SSI 리프트 앤 런(Lift & Run)

최고의 확장성과 함께 조밀하고 공간 절약적인 적재 및 반출의 이점을 누릴 수 있습니다.

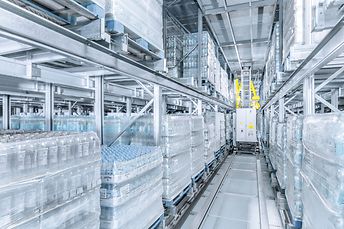

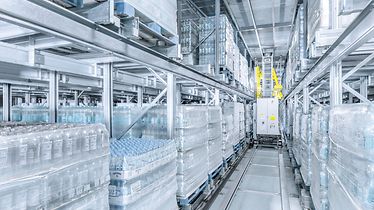

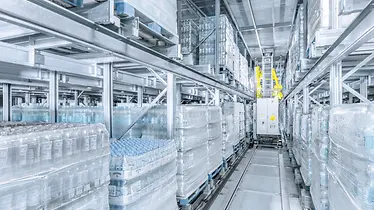

Highlight Image Food & Beverage, SSI Lift&Run

효율적인 팔레트 채널 보관을 위한 SSI 리프트 앤 런(Lift & Run)

쉐퍼시스템즈의 SSI Lift & Run System은 채널 스토리지 시스템에서의 고도로 동적인 팔레트 취급을 위한 경제적인 솔루션입니다.

 SSI Lift & Run 적재 장치는 대개 최대 9미터 보관 높이의 팔레트를 적재하고 반출하는 데 사용되며, 통로당 2~4개의 랙 레벨을 제공할 수 있습니다. 여기에는 자율 화물 취급 장치 SSI Orbiter LHD용 리프팅 장치가 달린 셔틀 차량이 있습니다.

기존의 적재-반출 장비와 달리 SSI Lift & Run은 두 개의 레일 위에서 이동하므로 상부 가이드 레일이 필요하지 않습니다. 서로 위, 아래로 다수의 장치를 배치하여 사용하면 최대 45미터 높이의 하이 베이 창고를 쉽게 만들 수 있습니다. 팔레트는 리프트에 의해 공급되거나 반출됩니다. 쉐퍼시스템즈 트윈 붐 SSI Lift & Run은 팔레트를 수평 방향으로 옮겨 팔레트 트럭 위에 올려놓습니다. 오비터는 랙 채널에 팔레트를 보관하거나 채널에서 팔레트를 반출하는 역할을 합니다. SSI Lift & Run과 리프트를 함께 사용하면 처리량을 크게 향상시키는 Schaefer Lift & Run 시스템을 만들 수 있습니다.

쉐퍼시스템즈의 SSI Lift & Run System은 꾸준히 팔레트 취급을 위한 물류 매트릭스 개념을 기반으로 합니다. 당사는 기존의 적재 및 반출 장비에 대한 매력적인 대안으로서 적은 공간만 차지하면서 에너지를 효율적으로 사용하는 매우 역동적인 솔루션을 제공합니다.

SSI Lift & Run is a highly dynamic pallet handling system

An economical solution for highly dynamic pallet handling in channel storage systems

SSI Lift & Run System

Together, SSI Lift & Run and the lifts create the SSI Lift&Run System which significantly enhances your throughput.

Functions and benefits

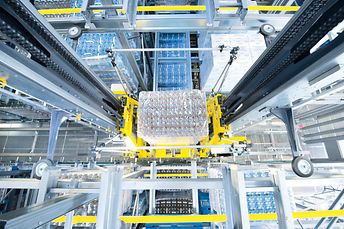

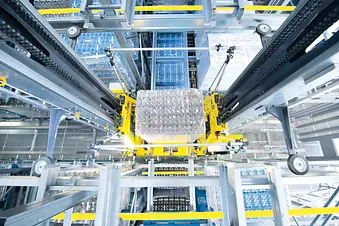

Warehouse machine Schäfer Lift&Run in combination with channel storage system

The WAMAS® logistics software from SSI SCHAEFER controls the processes in the SSI Lift & Run System. This includes incoming goods and outgoing goods registration along with loading checks as well as stock and storage space management. In addition, the control system also manages the material flows and transport within the company. Thanks to their interface compatibility, our systems can also be effortlessly connected to your own ERP system.

Warehouse machine Schäfer Lift&Run in combination with channel storage system
  • Efficient pallet storage in channel storage systems with flexible channel vehicles (especially suitable for the beverage industry)

  • Use of multiple devices one above the other: Multiplication of turnover performance without loss of storage space

  • Integrated hub enables linked incoming and outgoing goods flows

  • Layout scalable to specific customer needs

  • Energy efficiency due to low weight and efficient drive systems

RheinfelsQuellen 사례 연구, 독일

계절 성수기를 위한 지능형 솔루션

더 보기

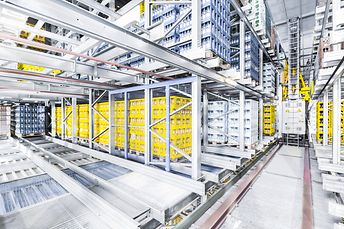

The Schäfer Lift&Run System is used for handling full pallets in the channels
