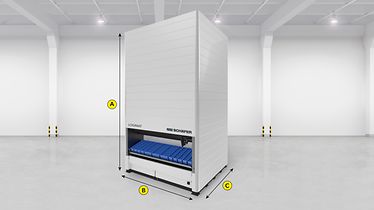

Minimum height: 2,450 mm
Maximum height: up to 23,850 mm in 100 mm increments
C height of operating opening: 1,950 mm (depending on leveling)
Tray load capacity: up to 700 kg
Machine load capacity: up to 80 tons

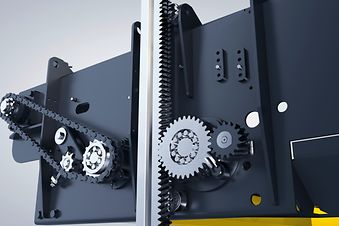

The rack and pinion drive is equipped with an automatic lubrication system, which provides preventive maintenance every time the elevator moves.
ADVANTAGES
Maximum availability due to robust technology
Minimal maintenance due to automatic lubrication
High positioning accuracy without sensor technology that is susceptible to faults
