The dynamic market environment of the printing industry requires Müller Martini to provide quick responses with efficient solutions with smooth processes. For this reason, Müller Martini decided to modernize its storage environment and replace the existing 46 narrow lift modules with 17 new three-meter wide SSI LOGIMAT® Vertical Lift Modules from SSI SCHAEFER. The direct integration of the new lift modules into the existing SAP environment was a crucial success factor for Müller Martini.

Project Requirements

The dynamic market environment of the printing industry requires Müller Martini to provide quick responses and efficient solutions with smooth processes. For this reason, Müller Martini decided to modernize its storage environment and replace the existing 46 narrow lift modules with 17 new three-meter wide SSI LOGIMAT® Vertical Lift Modules from SSI SCHAEFER. The direct integration of the new lift modules into the existing SAP environment was a crucial success factor for Müller Martini.

Goals:

Efficient storage: Provision of a 2,600 m² storage area for approx. 48,000 items
Dismantling of the existing lift modules and construction of 17 SSI LOGIMAT® Vertical Lift Modules from SSI SCHAEFER without disrupting normal plant operation
Integration of the SSI LOGIMAT® Vertical Lift Modules into the SAP environment without the need for additional hardware and software
Optimization of the picking process

SSI SCHAEFER SYSTEM SOLUTION AND COMPONENTS

The spare parts and components handled on a daily basis (approx. 300 items) are delivered to quality control, or are taken directly to the assembly area or warehouse, depending on the requirements. A goods-in transaction and a transport order are generated via SAP ERP for those small parts that are delivered to the warehouse. The goods are then transported to a SSI LOGIMAT® for storage with the accompanying documentation.

If an assembly order is planned and recorded in the ERP system, a picking order with a barcode is generated and provided to the employees. The barcode is then read by the barcode scanner on the SSI LOGIMAT®. The required components are now provided by the SSI LOGIMAT®, and every time an item is removed, the process is acknowledged using the LOGIBAR. The lift system needs to generate the retrieval process for the small parts in ascending order by storage location and SSI LOGIMAT® to ensure efficient picking.

Once picking of the small parts is complete, the components, which are gathered on a carousel carrier are sent for removal in the relevant area and then delivered to the defined assembly address for installation.

Connection to SAP

Seamless Connection to the SAP-System

Thanks to Status C, the SSI LOGIMAT® Vertical Lift Modules can be integrated directly into the SAP environment. Future software updates from SAP can therefore be implemented easily.

SAP EWM implemented by IT experts: customized and from a single source

SSI LOGIMAT® Vertical Lift Module – Key system figures from Müller Martini

Warehouse area	500 m²
Number	17
Width/height	3.000 mm/6.850 mm
Number of trays	An average of 62 trays per lift module
Storage locations	51.900
Additional functions	LOGIBAR: Continuous confirmation light barrier under the operating opening for enhancing picking performance LOGITILT: Tray tilting mechanism for ergonomic operation LOGIDUAL: Alternating provision of trays on 2 operating levels per access opening LOGIPOINTER: Optical indication of the storage position using a laser pointer
Software solution	SAP integration using Status C

Case Study: Müller Martini Druckverarbeitungs-Systeme AG

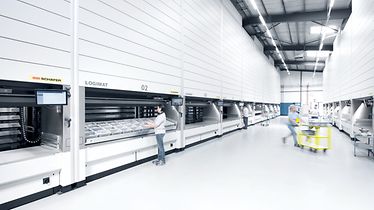

Müller Martini decided to modernize its storage environment and replace the existing narrow lift modules with new three-meter wide LOGIMAT® Vertical Lift Modules from SSI SCHAEFER.
