Gravity Flow Racks for Small Stored Goods

Material supply racks are designed to store small load carriers or packages in a space-saving manner and ensure that the units stored first are always removed.

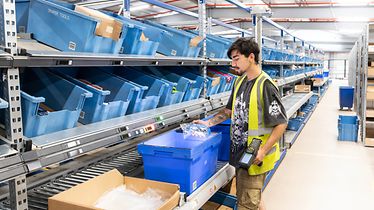

423_draper_tools_Pick_by_Light.tif

Store small load carriers according to the FIFO principle

SSI SCHAEFER offers a range of optimized systems for the provision of small and very small materials. All flow racks work according to the FIFO principle and can be equipped with either continuous roller rails or ergonomically arranged picking levels. ESD versions are also available to prevent damage to electronic components. All flow racks are tested and certified by TÜV Rheinland.

Flow racks have several advantages over conventional racks:

  • Reduction of internal transport and work routes (goods-to-person)

  • Reduction of space requirements through dynamic block storage

  • Flexible, scalable and modular plug-in system

  • Extensive setting options for optimized use

  • Roller tracks with excellent running properties, optionally with plastic or steel axle

  • Antistatic version with steel axle (ESD) available

  • Can be combined with AGVs, robotics, conveyor technology or racking systems

  • Extensive and high-quality accessories

Material supply and pallet flow racks

From the smallest containers to large cartons - all applications can be covered with SSI SCHAEFER systems and solutions.

Download file

Gravity flow racks for efficient transportation

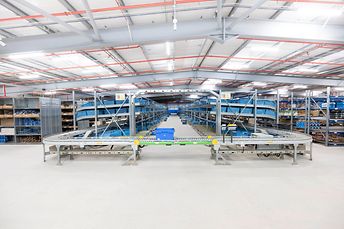

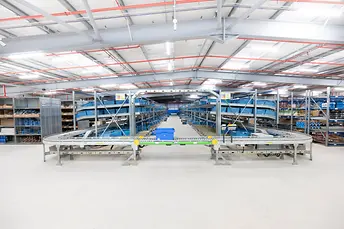

406_draper_tools_Pick_by_Light.tif

Flow racks are designed to allow individual packaging units or cartons to slide on roller conveyors from the loading side to the retrieval side. This ensures both particularly gentle and very efficient transportation of your small load carriers. Robust roller rails in various designs guarantee smooth throughput.

Flow racks can be adapted to the specific dimensions of the stored packaging units and are therefore suitable for different item sizes and shapes.  Various divider systems also offer guides that are precisely matched to the container. A connection to other material transport systems, such as a conveyor system, can be easily implemented.

The shelving frame is formed by stable and sturdy upright frames in conjunction with bracing beams. These accommodate the complete continuous frame units, which can be adjusted quickly and without screws in height, inclination and horizontal position using adjusting hooks. A stepped design, with outlet plates or kinked geometry can also be realized at any time. Please do not hesitate to contact us.

For example, pallet flow racks offer you an efficient solution for the optimized storage and picking of goods in individual packaging units and help to optimize warehouse processes. Shorter distances and ergonomically optimized access to goods relieve your employees and speed up work processes at the same time.

Containers and Storage Boxes

Our boxes and containers are designed to match perfectly and can be integrated into our shelving systems without any problems.

Read more
Container Systems by SSI SCHÄFER

Sliding shelves: Shelving with inclined shelves

Shelf storage racks / material supply racks can safely accommodate all types of containers with a wide range of dimensions and can therefore be used universally. This product is characterized by its high load capacity of up to 2.5 t per bay, its flexibility by combining basic and add-on bays to form rack rows and its cost-effective design with galvanized components throughout.

On the inclined levels, a stop crossbar or a stop rail stops the containers safely and reliably. The side guides on the ends of the shelves prevent them from falling out between the uprights.

Pre-assembled shelf frames and system components ensure quick and easy assembly, as they can be joined together without screws. Plug-in box guides made of wire brackets provide additional subdivision.

Space-saving and efficient - live storage racks in use

Wherever materials and goods need to be handled quickly and efficiently without interruption, pallet flow racks are the ideal choice:

  • E-commerce and retail: efficient product handling with high turnover rates

  • Food and beverage industry: Ensuring the shelf life and quality of products (FIFO)

  • Automotive industry / Manufacturing industry / Order picking: Required reduction in throughput times

  • Wholesale and retail industry: High turnover, especially for seasonal items or promotional campaigns

Flow Racks for Small Goods Case Studies:

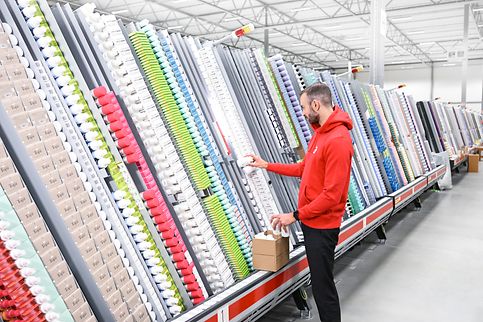

A-Frame replenishment

Apotea Automates E-Commerce Warehouse With A-Frame

CIP-0095_corr2_sl.tif

How to Assure 100% Accuracy with Robotic Picking?

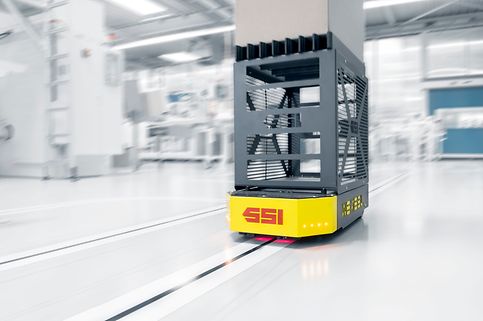

Automated guided WEASEL®

AGV WEASEL®

A-Frame Picking System

A-Frame

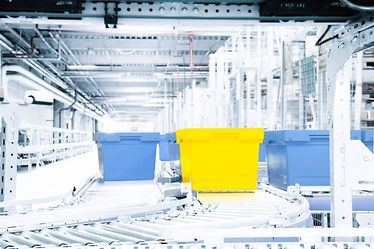

Container and Carton Conveyor System
