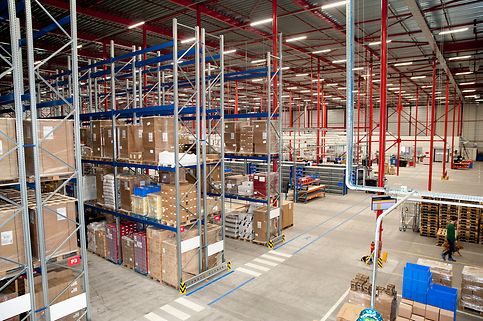

Pallet Racking PR 600: The Industrial Solution for Pallets and Large Load Carriers

Perfect Solutions for Storage in Your Pallet Warehouse

In wholesale or spare parts warehouses, in production and in many other areas: our PR 600 pallet racking is at home wherever pallets of any kind are stored. The pallet racking system is suitable for pallet storage of medium and large-volume goods with medium to heavy loads. Expandable at any time and equipped with an extensive range of accessories, the PR 600 offers a straightforward and customizable racking solution.

Your advantages at a glance:

• Modular principle enables the most efficient use of space

• Easily expandable

• Extensive range of accessories for every application

• Frame load capacity of up to 30 t

• Shelf load capacity of up to 4.5 tons

• Single or double-deep storage possible

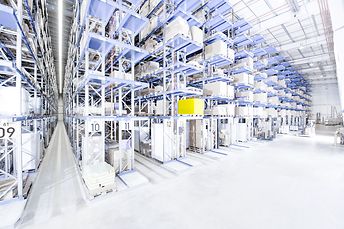

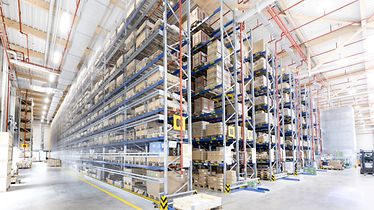

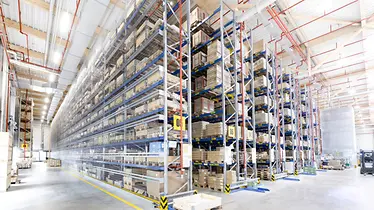

• Narrow-aisle or wide-aisle storage options

• Suitable for use in shelving platforms

• Comprehensive security program available

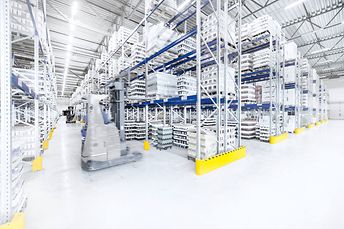

• Optimized for use with AGVs and AMRs

Technical Details of our Pallet Racking

Stable, safe, scalable - and yet easy to assemble with just a few components: the robust design of the PR 600 pallet racking is guaranteed by a special construction.
The heavy-duty shelving for pallets is available in frame depths of 850 mm, 1,100 mm and 1250 mm and in various heights. The rack frames are bolted together and therefore designed for the highest loads. Column profiles made of cold-rolled, high-strength steel offer high rigidity thanks to their special shape and can be bolted together to form a stable truss frame with horizontal and diagonal struts.
The longitudinal beams with welded-on 5-hook suspension brackets guarantee a force-fit and form-fit connection with the shelf supports. They are adjustable in 50 mm increments. Safety pins protect against unintentional lifting.
Checking the static design of our heavy-duty racking not only offers you maximum stability, but also maximum safety and 100% bay load. We will be happy to advise you on how you can utilize the full potential of your warehouse.

Better Safe Than Sorry: More Safety and Protection in Pallet Warehouses

Safety in the workplace also plays an important role in warehouses. In addition to the high stability and safety requirements, our PR 600 pallet racking offers a wide range of additional safety options. In addition, officially certified shelf inspectors can carry out the prescribed safety checks on request.

• Galvanized mesh rear wall cladding secures the rear sides of free-standing shelving against the falling of load units or stored goods. These consist of mesh panels in defined lengths and heights, which are combined with each other depending on the rack height and clear bay width.

• End locks help to prevent load units from falling sideways.

• Push-through protection devices prevent load units from falling out unintentionally. They are required for double shelving if the distance between the load carrier or load unit is less than 100 mm.

• Warehouse and storage location marking speeds up processes by guiding order pickers and forklift drivers to the correct storage location in the shortest possible time - with a clearly understandable guidance system that can be implemented quickly and easily. Additional information can be printed, e.g. storage areas, check digits, barcodes, position arrows. A wide range of fonts, basic colors and sizes for signs, labels, label holders and floor markings are available.

More safety for vulnerable areas

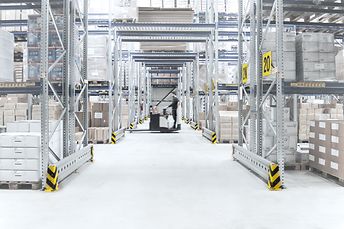

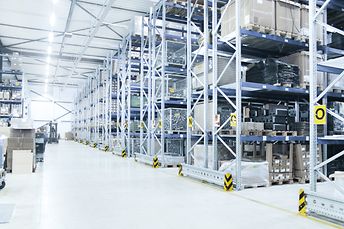

Particularly vulnerable areas of pallet racking, e.g. passages or heavily frequented aisles, must be protected by corner guards or impact protection. All other rack uprights can be protected by collision or upright protection.

• Pallet rack Corner protection

  • Sturdy construction

  • Including ground anchor

• Pallet racking upright protection STS

  • To reinforce the front shelf supports as protection against damage

  • 400 mm high, including floor anchor

• Pallet racking impact protection in two versions

  • Form K with a stable C-sigma profile

  • 400 mm high, including floor anchor

FAQ About the PR 600 Pallet Racking

PR 600 pallet racking: In which areas of application can it be used?

Pallet racking is suitable as classic storage racking for Euro pallets or pallet cages, for example, regardless of the sector.
The loads that a pallet rack can accommodate depend on various parameters such as height, width, rack depth, frame design, number of storage levels and the beam design. Storage containers or bulky goods can also be stored using accessories such as gratings or chipboard. Mesh back panels, floor fixings and corner protectors ensure the safety of the shelving and the protection of stored goods.
Storage and retrieval is carried out by so-called industrial trucks according to the goods-to-person principle. This can be done manually (e.g. forklift trucks) or automatically by automated guided vehicles or autonomous mobile robots.
Pallet racking can be flexibly extended in manual storage processes. The storage space can be increased by adding bays, starting with a basic rack. Additional storage levels are created in a racking bay by installing pairs of traverses.

How can you protect a pallet rack from damage?

A damaged shelf is a potential hazard and the safety of employees in the warehouse is a top priority. In addition, DGUV Information 208-061 (German Social Accident Insurance) and DIN EN 15635 (Racking inspection) set out statutory regulations for the safe operation of storage facilities. The regulations and measures ensure the safe and proper use of storage facilities. However, in the hustle and bustle of day-to-day business, possible collisions between forklift trucks and racking equipment cannot always be ruled out. We therefore recommend an additional safety accessory:
A ram or corner guard is fitted to the outside corners of the pallet racking on the floor. The corner protection prevents forklift trucks from unintentionally damaging the frames. The impact protection is anchored to the floor in front of the shelving and thus protects the corners and ends of the shelving. The color-coded corner protection is an additional warning for the forklift truck not to drive too close to the racking. Individual uprights can be secured close to the floor with an upright protector for pallet racking. This protection is attached to the upright.

What needs to be considered when using pallet racking?

Storage facilities/shelving are work equipment. They are subject to the Ordinance on Industrial Safety and Health and must be inspected by qualified persons in accordance with §10 of the BetrSichV. The DIN EN 15
635 standard specifies the inspection procedure for storage equipment/shelving.

Our experts will be happy to carry out regular shelf inspections for you.
Give us a call and make an appointment.
