Pouch Sorter System

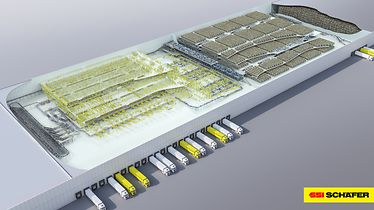

3D_Bild_Final

SSI Carrier

The SSI Carrier was implemented in six modules, each spanning three levels and equipped with 120,000 pouches. This scalable overhead conveying system combines transport, buffering, sorting, and sequencing functions in a single system and allows fully automatic assembly of multi-part customer orders while protecting the products.

Loading Station

At the loading stations, each item is placed individually in a pouch.

The 360° video offers detailed insights into this. By moving the cursor, you can choose the viewing angle yourself.

Loading...

Dynamic Buffer

Fast movers from returns are temporarily stored in the pouch sorter’s dynamic buffer, making them available directly for new orders.

The 360° video offers detailed insights into this. By moving the cursor, you can choose the viewing angle yourself.

Loading...

Matrix Sorter

The items are then transferred to the matrix sorter, where they are sorted in the desired order - even within a customer order.

The 360° video offers detailed insights into this. By moving the cursor, you can choose the viewing angle yourself.

Loading...

Unloading Station

At the unloading stations, the items are removed from the pouches in the desired sequence.
