Tyre Storage Racks for tyres and wheels

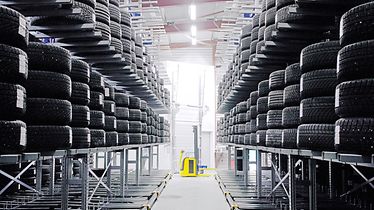

Space-Saving Storage of Tyres and Wheels with Mobile Racks

Professional wheel and tyre storage requires a high storage capacity in order to cover costs and be efficient. The mobile racking systems from SSI SCHAEFER are ideal for this application.

Advantages at a glance

Double the storage capacity compared to a static solution in the same space
All wheel and tyre sizes up to 800 mm in diameter can be stored
Storage of wheels with spikes possible
Compliance with applicable health regulations
Fast and safe storage and retrieval thanks to trolley that can be driven underneath
Reduced operating and real estate costs thanks to excellent use of space
Equipped with modern PLC
Trolley loads up to 50 t, trolley length up to 50 m
Scalable thanks to modular design
Combination with conveyor technology and AGVs possible

How Does a Mobile Tyre Rack Work?

The EMX mobile racking system for tyres and wheels comprises conventional tyre or cantilever racks that are mounted on carriages and moved parallel to each other using a motor drive.

The mobile racking can be operated either via a control panel on the mobile trolley or optionally via a radio remote control. Storage or retrieval is carried out by selecting the desired movement command function once, whereupon the trolleys are automatically moved in the desired direction. The tyre are removed or returned quickly and safely in the open aisle. The space saved offers you maximum efficiency, as this solution significantly reduces the space required.

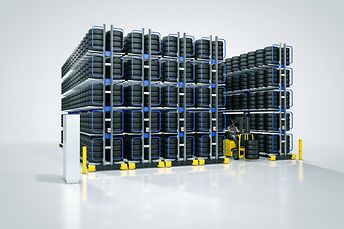

Sliding Rack for Wheels

The new cantilever sliding rack for wheels is available in two standard sizes each for bay widths and bay depths. The system is therefore easy to plan and can be extended at any time if required. Some basic facts:
• The wheels are stacked horizontally in groups of 4 on cantilever arms
• There is space for up to 8 stacks per bay
• Thanks to the ability to drive under the stacks, the wheels can be stored or retrieved ergonomically, quickly and safely from the floor using conventional forklift trucks
• Alternatively, upright storage is also possible

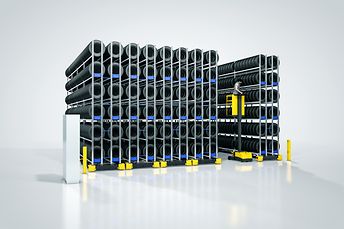

Mobile Tyre Racks

With this storage principle, the tyres are stored upright next to each other on crossbars
As recommended by the manufacturers, the tyres can be rotated regularly thanks to direct access. Loads of up to 4,500 kg are possible per bay. This allows the hall height to be used efficiently. Up to 18,000 wheels can be stored on ten trolleys per system.

Safe and Accident-Free Working

The mobile pallet racking is equipped with emergency stop buttons, access light barriers, manual release systems, distance sensors and safety light barriers - making an important contribution to smooth and accident-free processes in your warehouse.

Clever control system

Every SSI SCHAEFER mobile racking system is equipped with a modern programmable logic controller (PLC) with integrated safety. A modular concept makes it possible to assemble the system individually according to your wishes and requirements.

Comprehensive advice

We will be happy to advise you on which type of wheel or tyre storage system is right for your business model and your premises. We realise individual, but above all safe and functional systems with maximum efficiency for you.
