Draper Tools Maximises Efficiency with Semi-Automated Warehouse Solution

SSI SCHAEFER implements customised logistics concept for Draper Tools in Great Britain.

A Bespoke Solution with a New Level of Efficiency

This new solution for Draper Tools includes a flow rack with pick-by-light, long-span shelving, modular shelving systems, and container conveyor technology. This efficient solution is based on the goods-to-person principle, which saves storage space and optimises shipping times.

Large Range - Even Greater Challenges

From jacks to spanners: Draper Tools offers a comprehensive range of hand and power tools and equipment for every need. Founded in 1919 by Bert Draper, the company sells over 11,000 products to DIY enthusiasts and trade customers from the construction, automotive, mechanical engineering and agricultural sectors via a global dealer network. John, Tom and Joe Draper are at the at the helm of the British family-owned business and continue to expand it with great commitment. But as the company grows, so do the challenges: In order to successfully manage the extensive product range, high-performance and future-oriented logistics are now more important than ever.

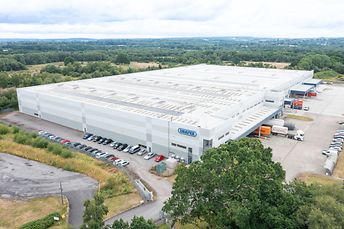

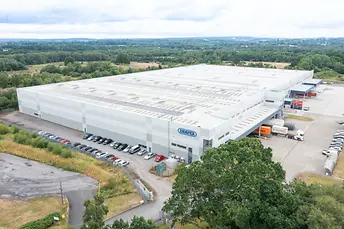

003_draper_tools_building_outside.tif

Strong Partners for Top Logistics Performance

In 2019, Draper Tools turned to intralogistics expert SSI SCHAEFER to relocate picking and storage to its new site in North Baddesley, Hampshire. The aim was to make optimum use of the existing warehouse space, improve processes and reduce shipping times. A challenging task that could only be mastered through particularly close cooperation:

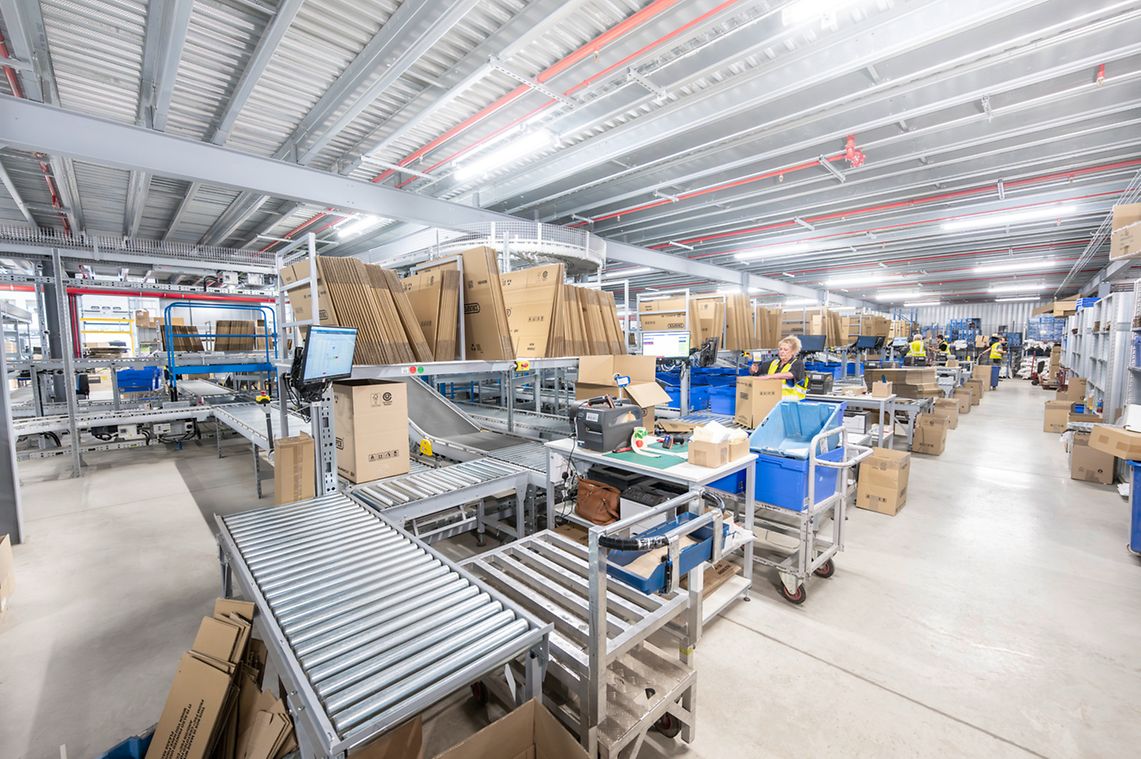

601_draper_tools_packing_station.tif

"Throughout the project, the support from SSI SCHAEFER was exceptional. We had the feeling that we had a partner who not only worked with us, but also for us. They took the time to understand our complex business processes and helped us refine them."

Matt Boschi
Operations Director at Draper Tools
Matt Boschi for web final
Matt Boschi
Operations Director at Draper Tools

Comprehensive Solution for Maximum Productivity

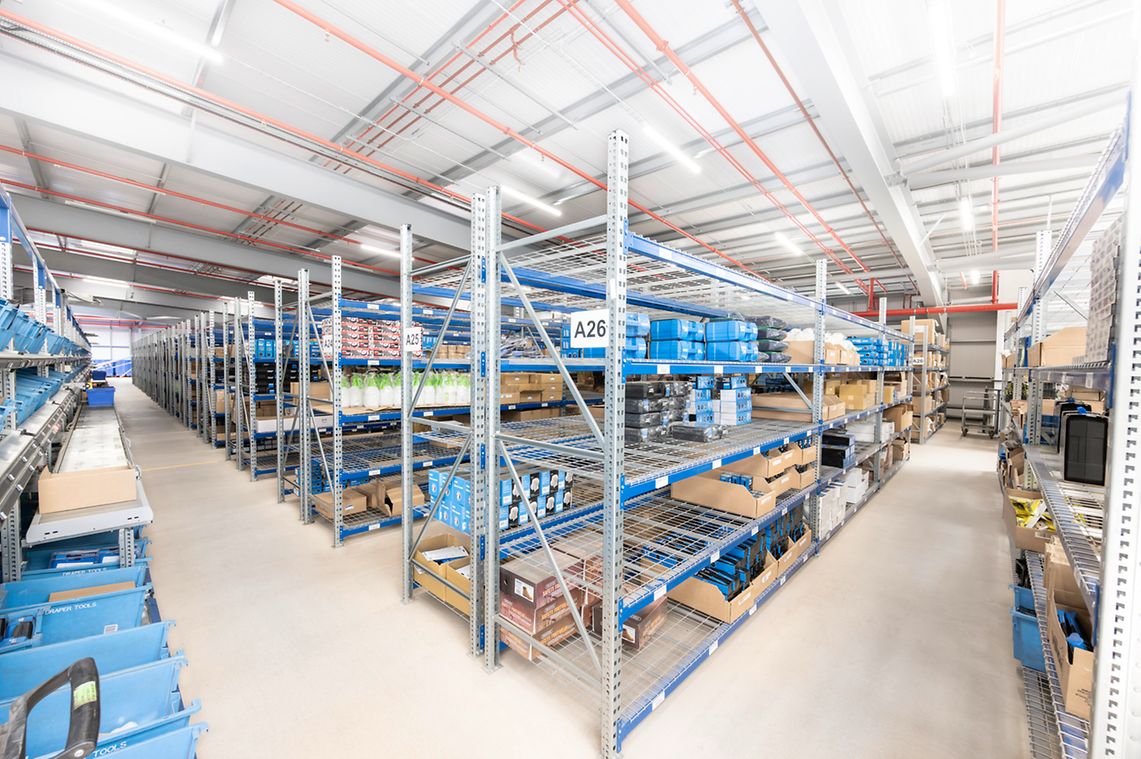

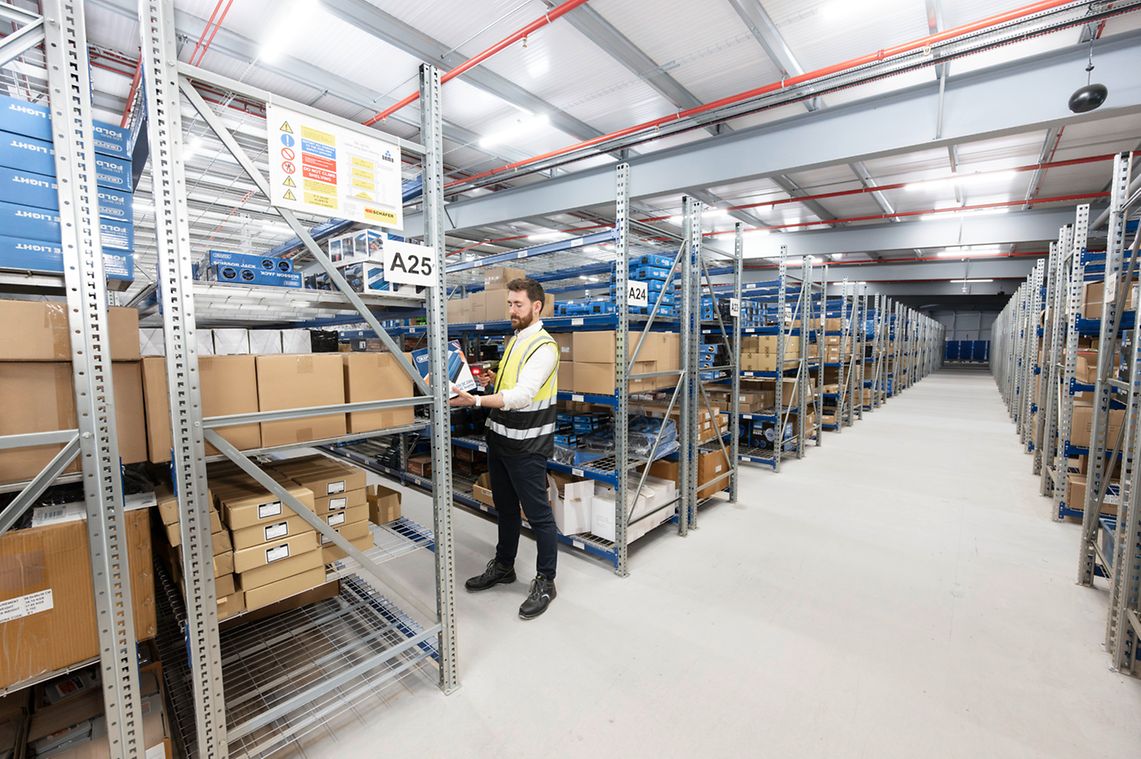

Even managing large SKUs is no problem with the new semi-automatic solution from SSI SCHAEFER. This is ensured by shelving, which can be flexibly adapted to a wide variety of items and individually extended in height, depth and field width, and wide-span shelving for bulky and heavy stored goods.

The goods are picked into the containers and transported to the second floor, where the entire process is repeated. A goods lift is included for those items which are too large for a tote. Seamless material flow is guaranteed: conveyor technology connects all levels and workstations right through to packing and goods issue on the first floor. The ingenious yet simple layout also saves valuable space and offers Draper Tools every opportunity for adaptation and future growth.

Handling 11,000 Stock Keeping Units (SKUs)

From an initial automation idea, SSI SCHAEFER and Draper Tools jointly developed a solution that is perfectly tailored to the warehouse layout, operation and the wide range of SKUs of the tool wholesaler: 21 picking stations with pick-by-light flow racks for fast movers, as well as shelving racks for slow-moving items, connected by bin conveyor technology over three levels. The semi-automated system with 420 bins and the ability to hold 8,000 different SKU’s is designed according to the goods-to-person principle and enables efficient picking of up to 25,000 units per day.

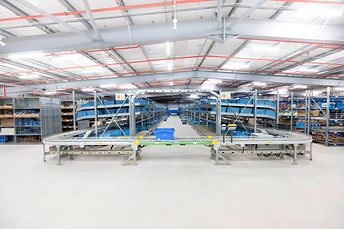

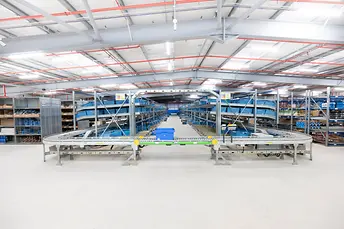

406_draper_tools_Pick_by_Light.tif

Smart Picking Thanks to Economical Shelving System

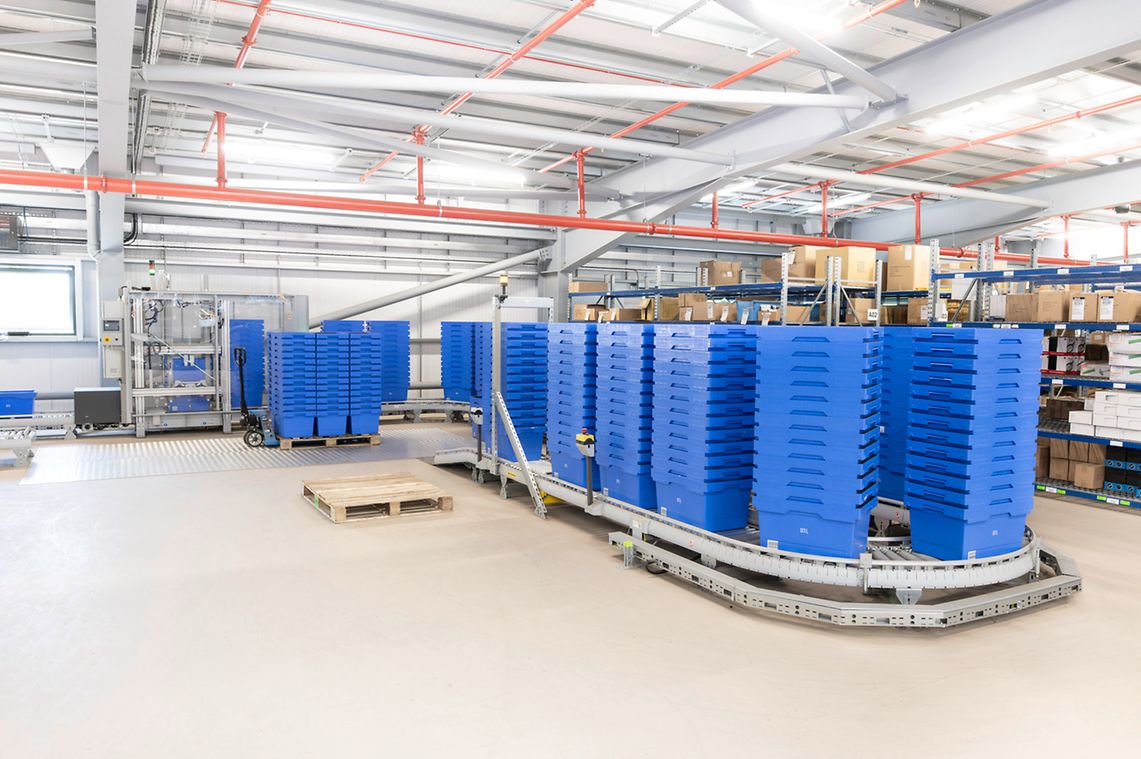

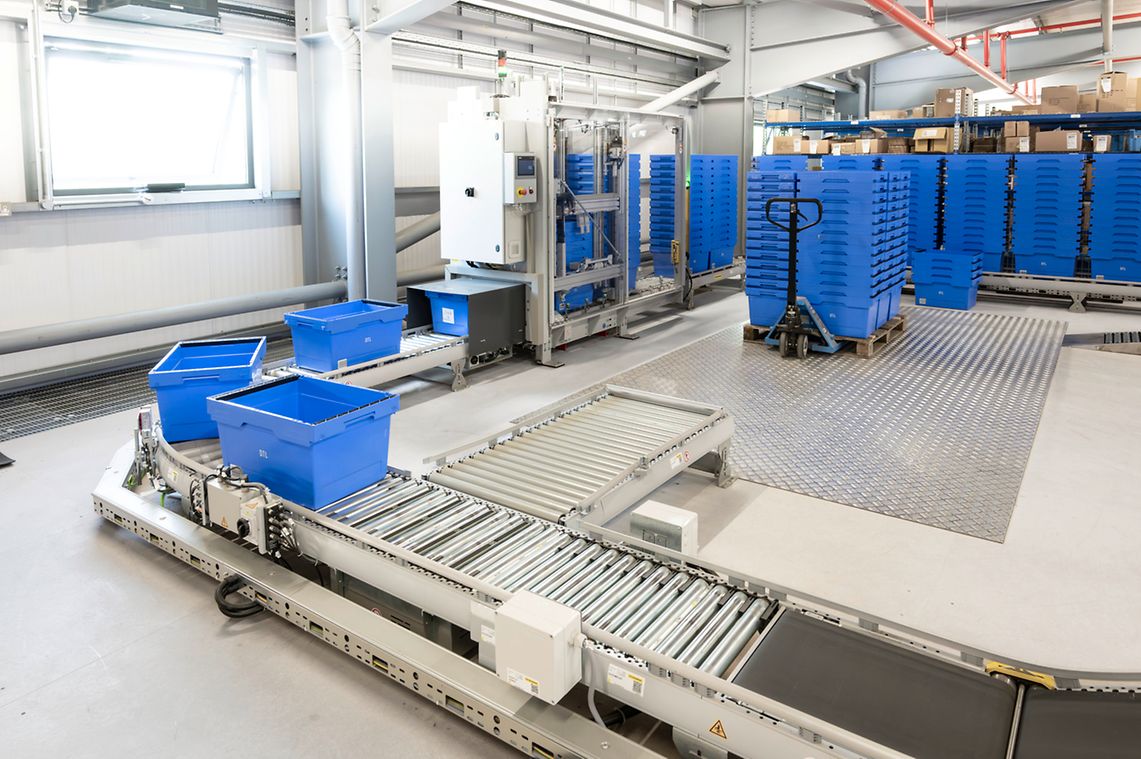

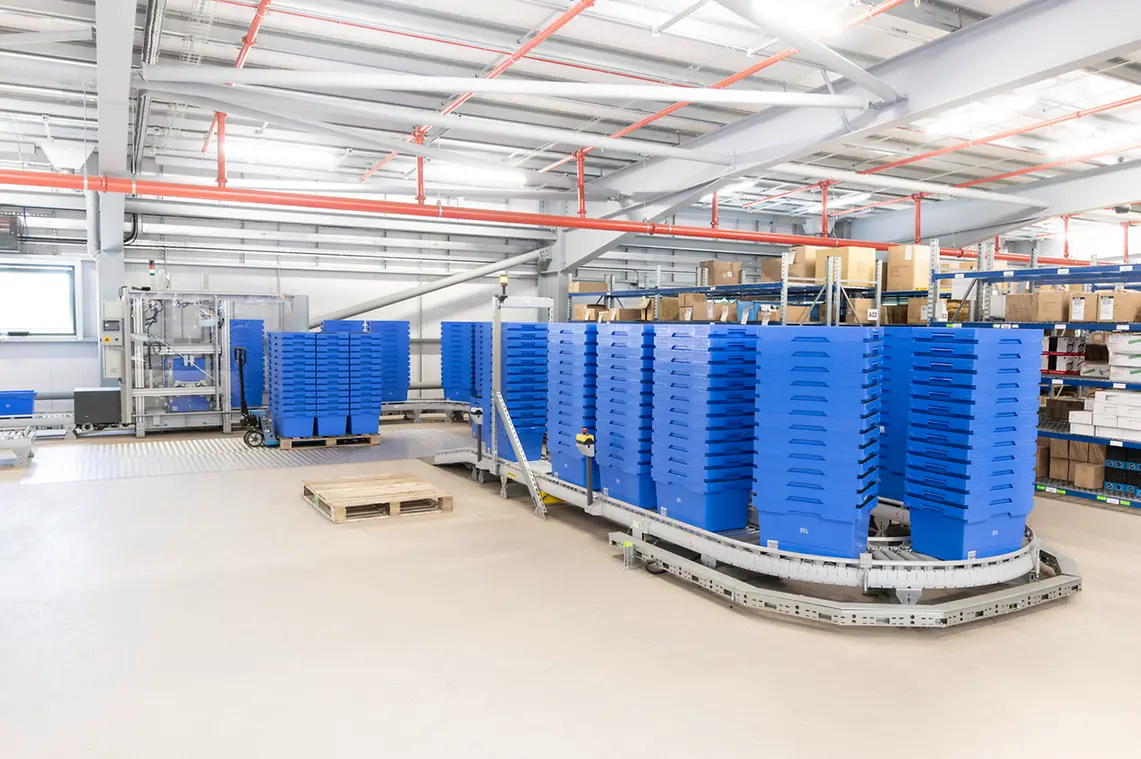

As soon as an order is received, orders are allocated to totes which are automatically launched from the tote destacker. Bins are transported via the conveyor system to the flow rack system (KDR) on the second floor, where they are loaded using pick-by-light. The KDR is ideal for small parts and, thanks to its robust roller rails, enables containers to flow smoothly from the loading to the picking side. This significantly reduces the walking distances for employees, reduces replenishment effort and speeds up order picking. Thanks to the dense storage in the KDR, the available space is also optimally utilised. In addition to the storage capacity, Draper Tools can also significantly increase the quality of its processes: the pick-by-light system virtually eliminates picking errors and increases speed of pick.

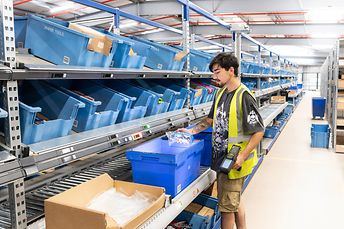

423_draper_tools_Pick_by_Light.tif

Logistics from SSI SCHAEFER: The Tool for Success

More storage capacity, better performance, higher customer satisfaction - the move to automation has already paid off for Draper Tools. Within just six months of commissioning the new warehouse solution, the most important goals were achieved: "We have seen a significant increase in picking and packing speed, allowing us to serve our customers even faster. Thanks to the optimal scalability of the system, Draper Tools is ideally equipped for a successful future and will continue to shape it with SSI SCHAEFER as a reliable partner.”

Related Products

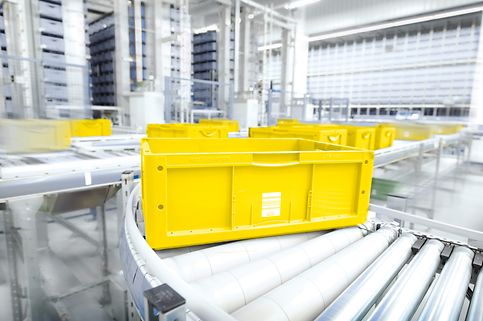

Euro size containers made of plastic from SSI SCHAEFER

Conveying Systems for Small Load Carriers

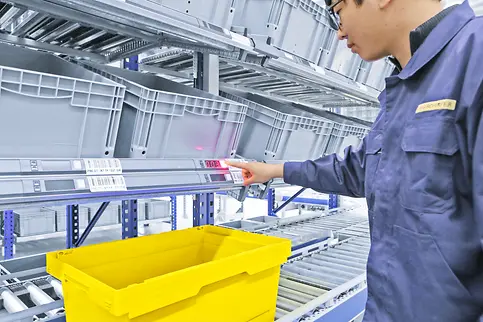

Pick to Light

Pick by Light and Put to Light

Discover more of our Case Studies

Success stories are always the most exciting when experienced up close and personal. Learn more about our intralogistics projects in our case studies: What challenges had to be overcome? What particularities had to be taken into account? And how were they ultimately successfully implemented? You can find all these interesting and useful details in our case studies.

We always work together with our customers to develop their own success story. Perhaps we can develop the next one with you.

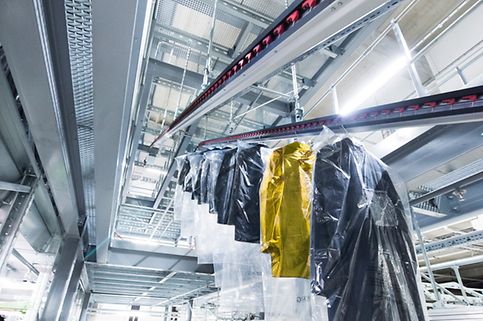

Case Study Stockmann

Case Study Stockmann

Mobile Racking (Type ESX)

Case Study Grolleman Coldstore

Pallet conveying system

Case Study Mydibel

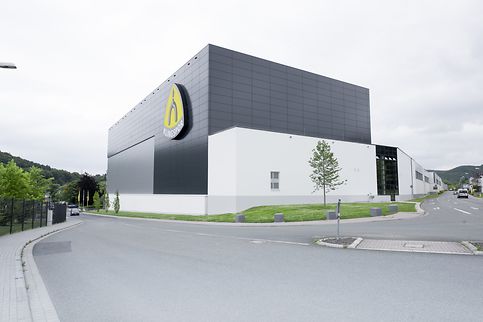

External view of the warehouse of Klingspor

Case Study Klingspor

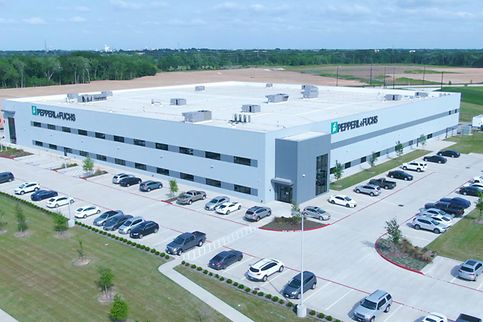

Case Study Pepperl+Fuchs

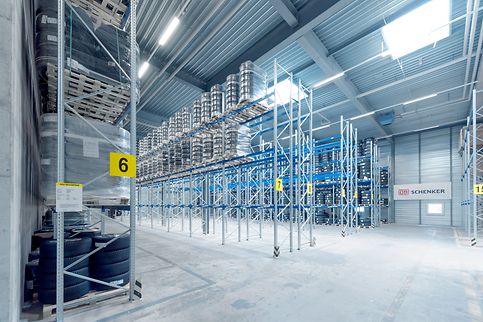

palett racking PR 600

Case Study DB Schenker

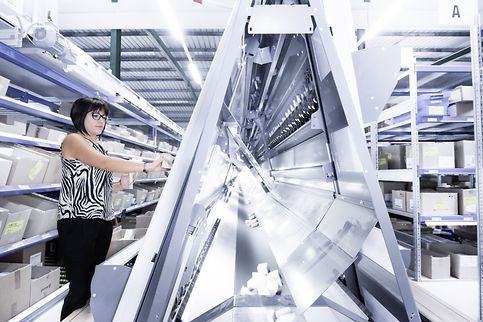

A-Frame

Case Study CERP Rouen

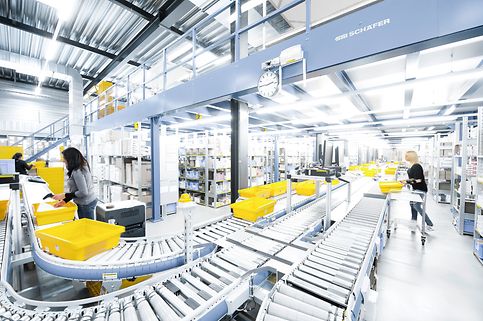

Reference Pharmapool

Case Study Pharmapool AG

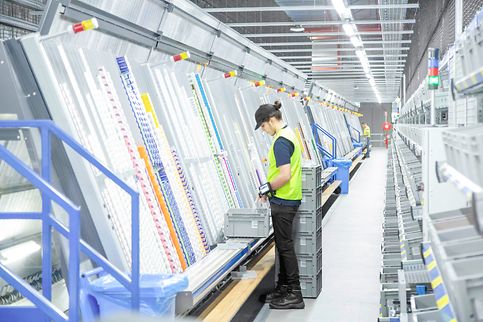

Warehouse worker filling A-frame equipment with stock from stock totes

Case Study Symbion

case study, united drug, dublin, ireland, 2018, healthcare, small parts,

Case Study United Drug


Case Study FREJA

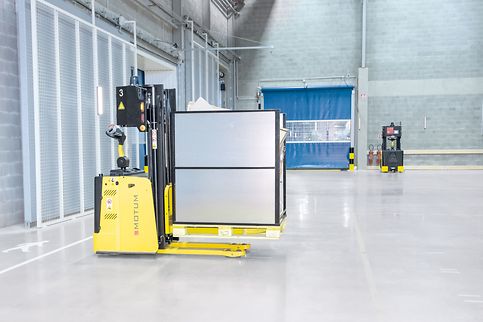

Automated guided vehicle by MoTuM

Case Study Longchamp

Vertical Lift Module LOGIMAT (Type SLL)

Case Study Müller Martini

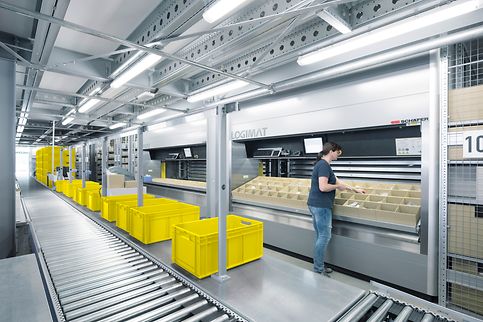

Vertical Lift Module LOGIMAT, Pallet Racking, mezzanine, conveyor system and

Case Study Niemann + Frey GmbH

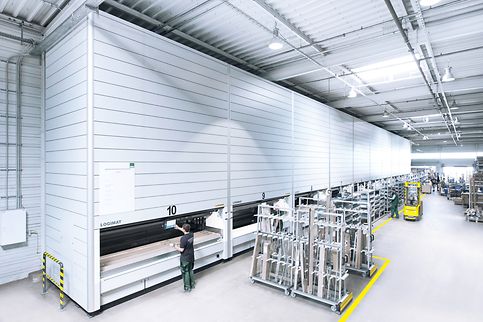

Full view of LOGIMAT reference VBH

Case Study VBH Holding GmbH

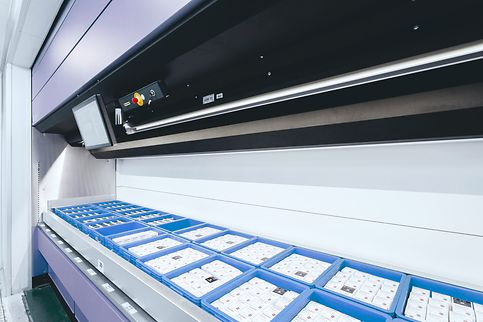

DCH Auriga Logimat case study

Case Study DCH Auriga

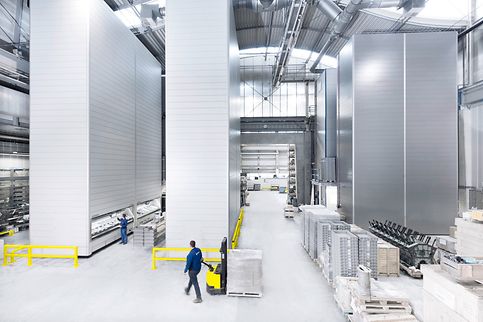

Complete view of LOGIMAT at QuantiParts

Case Study QuantiParts B. V.

Shop delivery - One box for the entire flow of goods at dm

Case Study DM

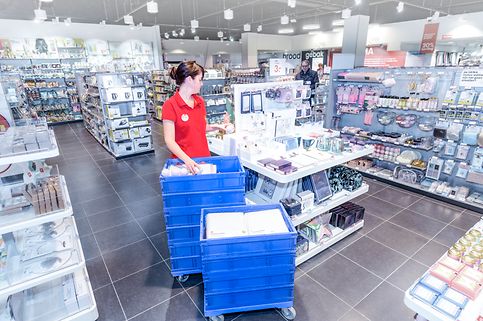

The Hema branches are mainly supplied with environmentally friendly returnable
