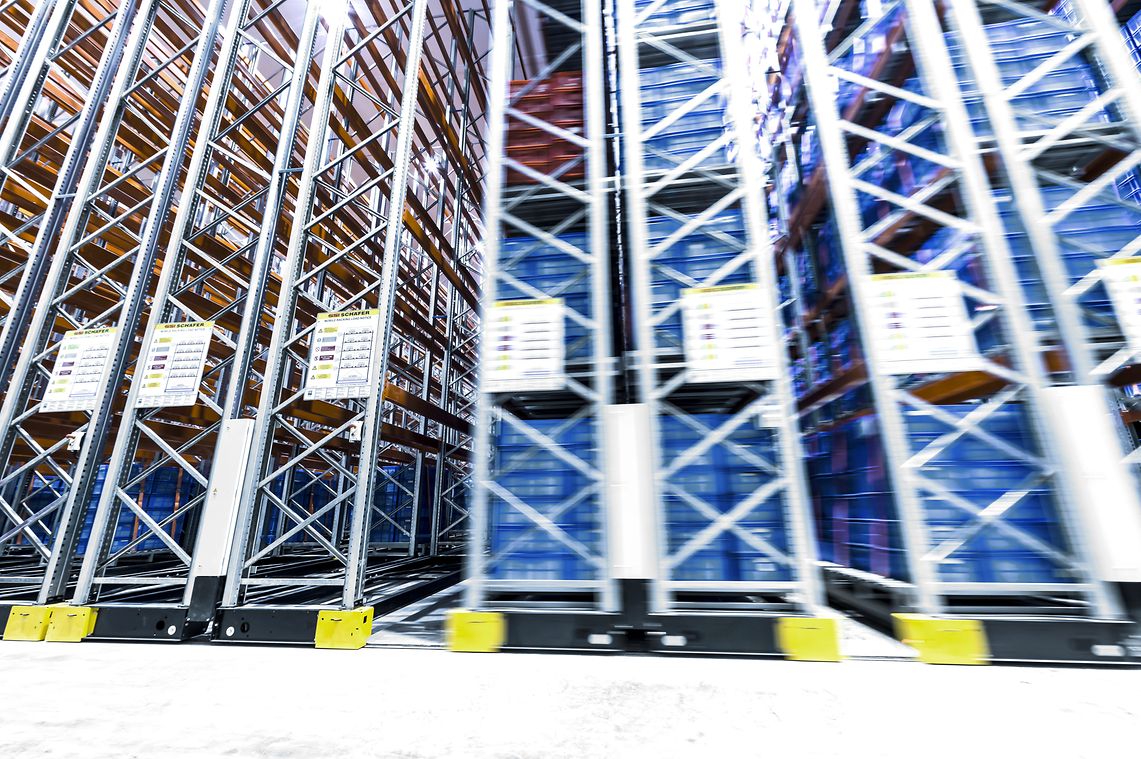

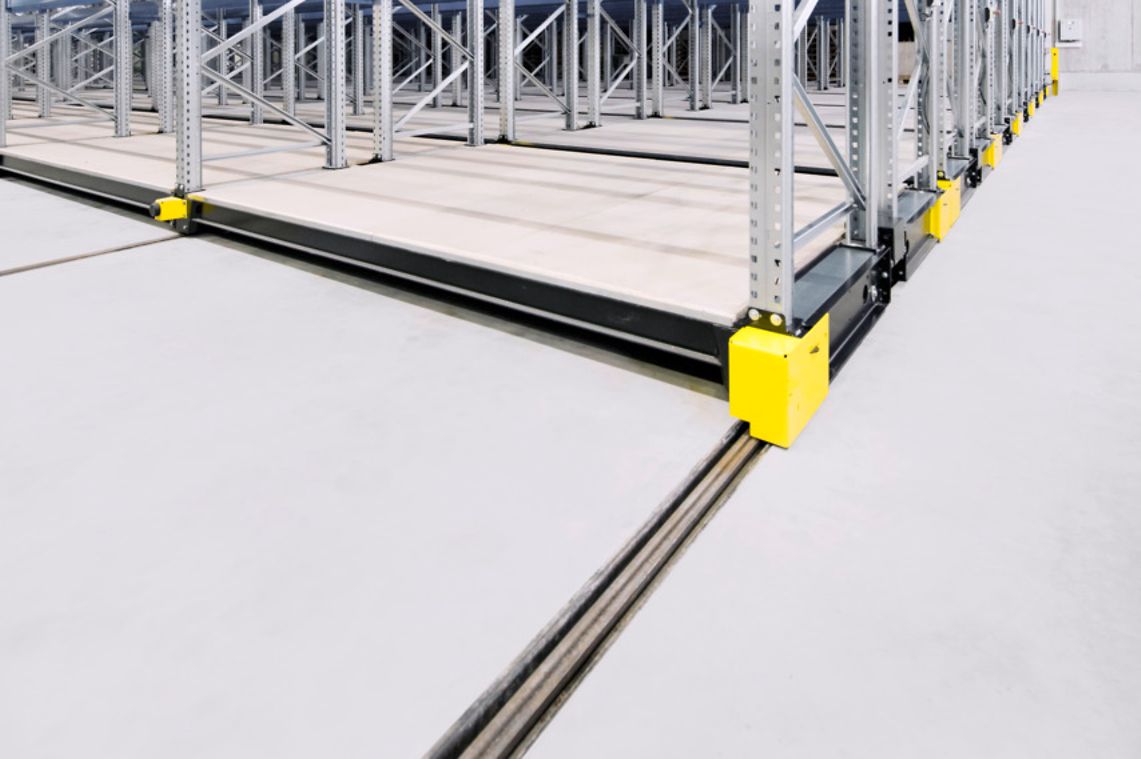

Mobile Pallet Racking

ESX - the Mobile Racking System for Heavy goods

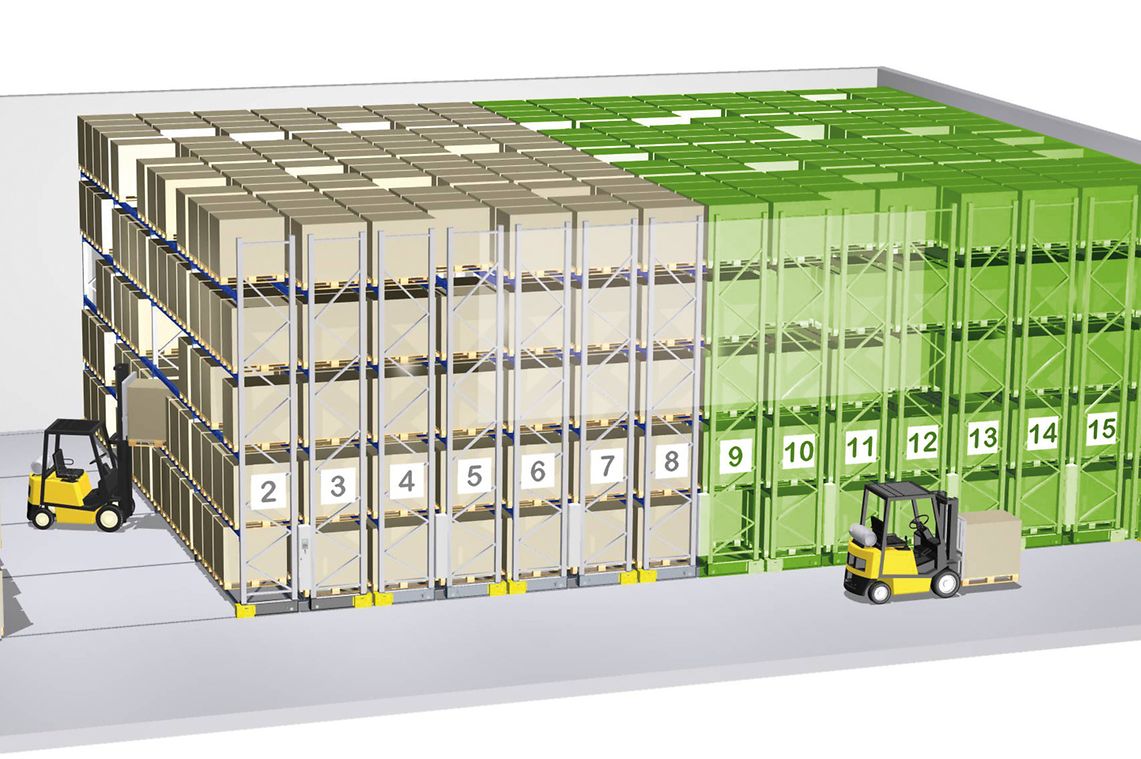

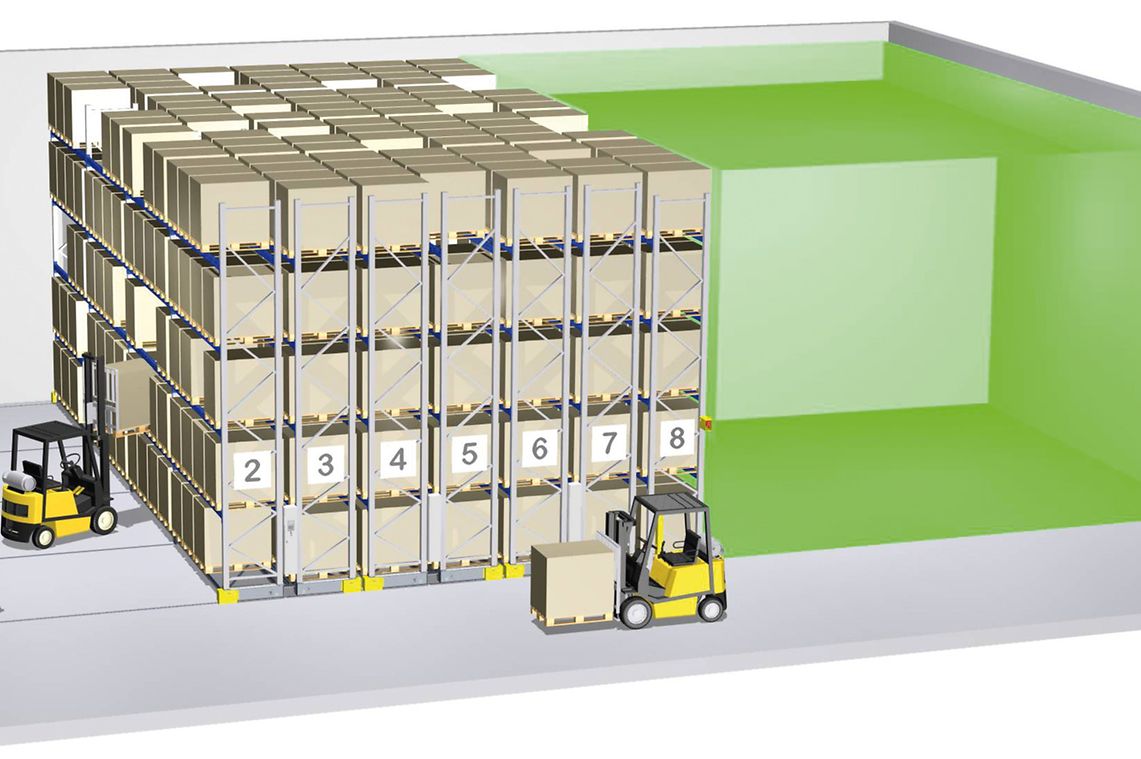

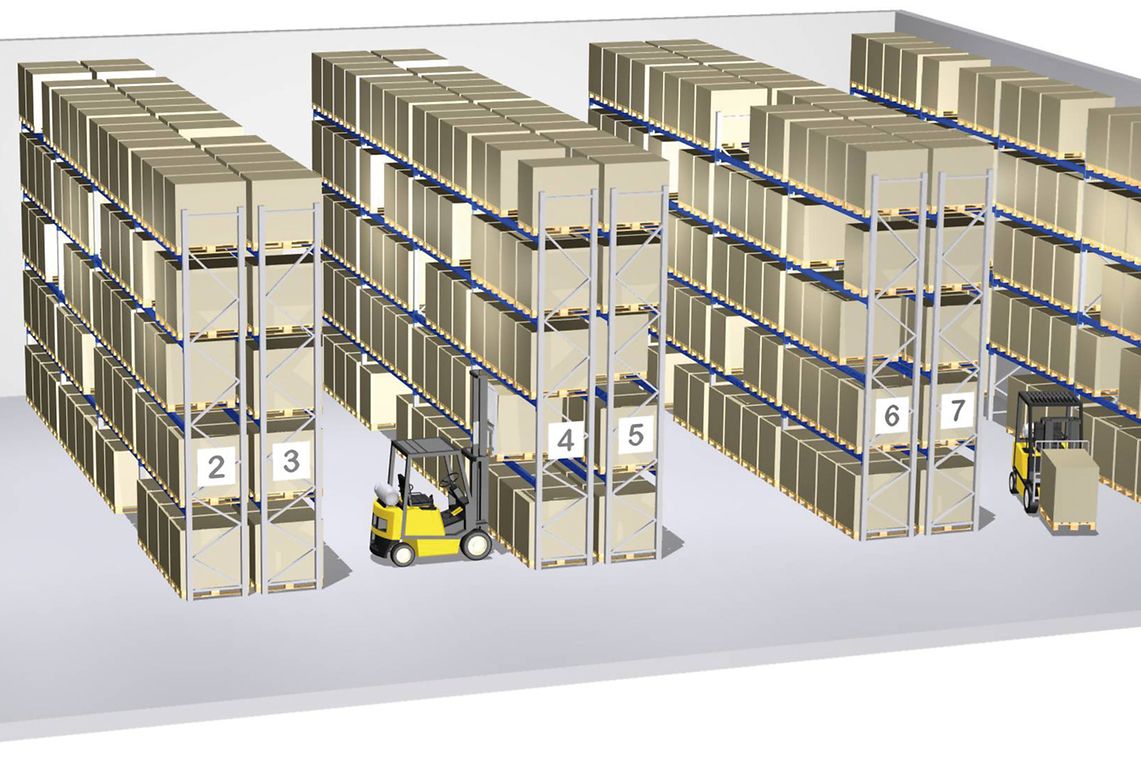

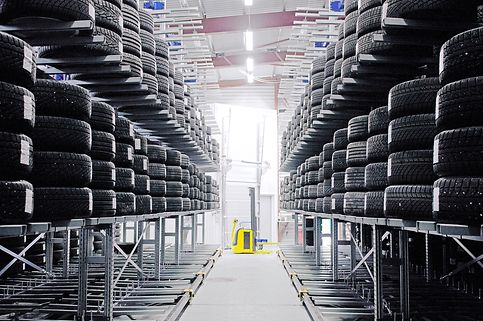

Regardless of whether you want to store very large or heavy goods: our heavy-duty mobile racking can withstand heavy loads - even for the highest demands on the weight and size of the stored goods. The space-saving solution is the ideal choice for storing pallets and long goods in particular.

The advantages at a glance:

• Increase in storage capacity by over 90%

• Space savings of up to 45%

• High efficiency and durability

• Scalable thanks to modular design

• Direct access to pallet storage locations avoids relocations

• High throughput thanks to intelligent storage strategies

• Up to 32 t bay load possible

• Combination with stationary conveyor technology and AGVs possible

• Optimization and reduction of travel times for internal processes

Why ESX Mobile Racking from SSI SCHAEFER?

Our mobile racking systems have been the basis for efficient warehouse logistics for our customers for many years. In addition to our own high standards of quality and efficiency, they also offer other decisive special features:

• Efficient application in the cold chain storage: the combination of mobile racking, conveyor technology and powerful electric drives make our systems the ideal equipment for your deep-freeze warehouse. The small space requirement also saves energy costs.

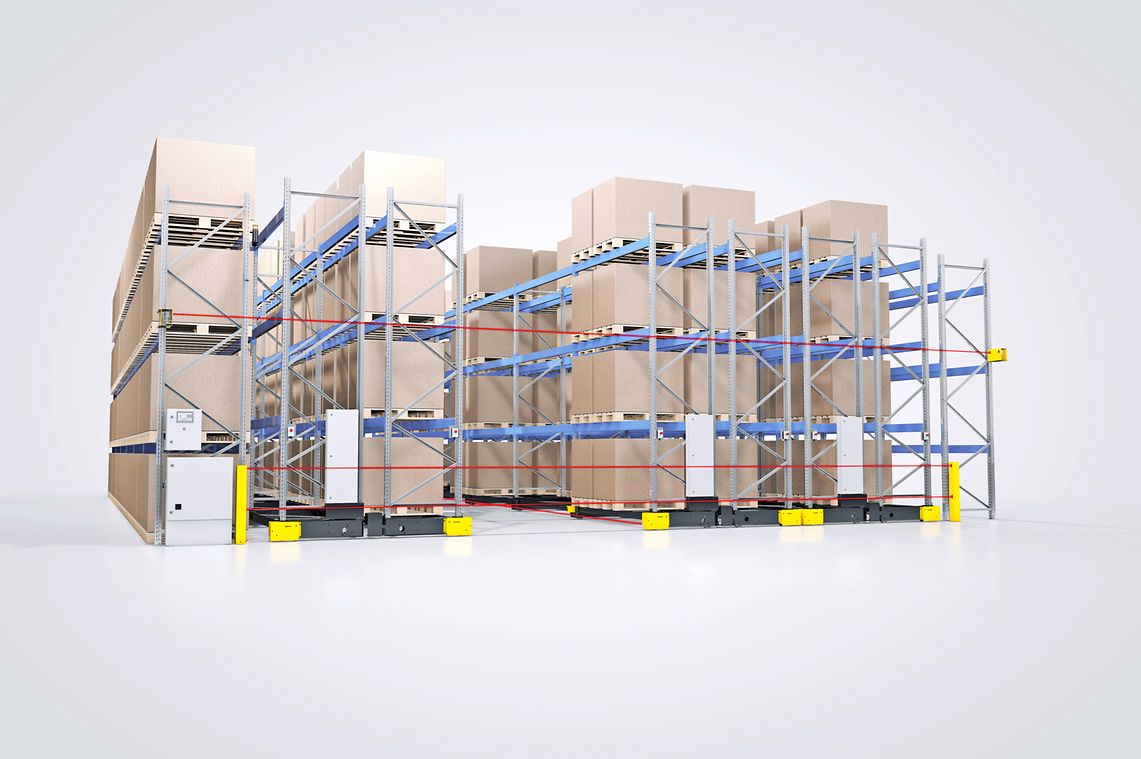

• Safe and accident-free working: The mobile pallet racking systems are equipped with emergency stop buttons, access light barriers, manual release systems, distance sensors and safety light barriers. In this way, they make an important contribution to smooth and accident-free processes in the warehouse.

• Intelligent system control: Each mobile racking system is equipped with a modern programmable logic controller (PLC) with integrated safety.  Among other things, this monitors the protection of the entire system via access light barriers as well as the aisles by means of foot light barriers on both sides of each trolley, thus ensuring safe operation of the system. Connection to a higher-level warehouse management system is possible via an interface.

• Earthquake-proof construction: Like many of our products, mobile racking systems are robustly constructed and can withstand most earthquakes. An acceleration of 1 m/s² is no problem as standard. If the mobile racking is to be installed in an area with a higher earthquake risk, it can also be adapted to meet the higher requirements. Talk to us!

• Effective fire protection: Our mobile racking can also be equipped with movable sprinkler systems to ensure effective fire protection. In this case, the sprinkler supply line can be either flexible or via scissor joints. Regardless of which provider you purchase your fire protection system from, our mobile shelving can be ideally combined with it.

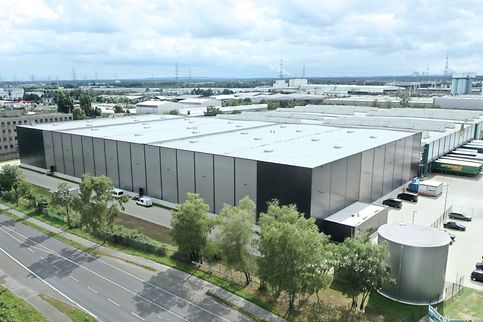

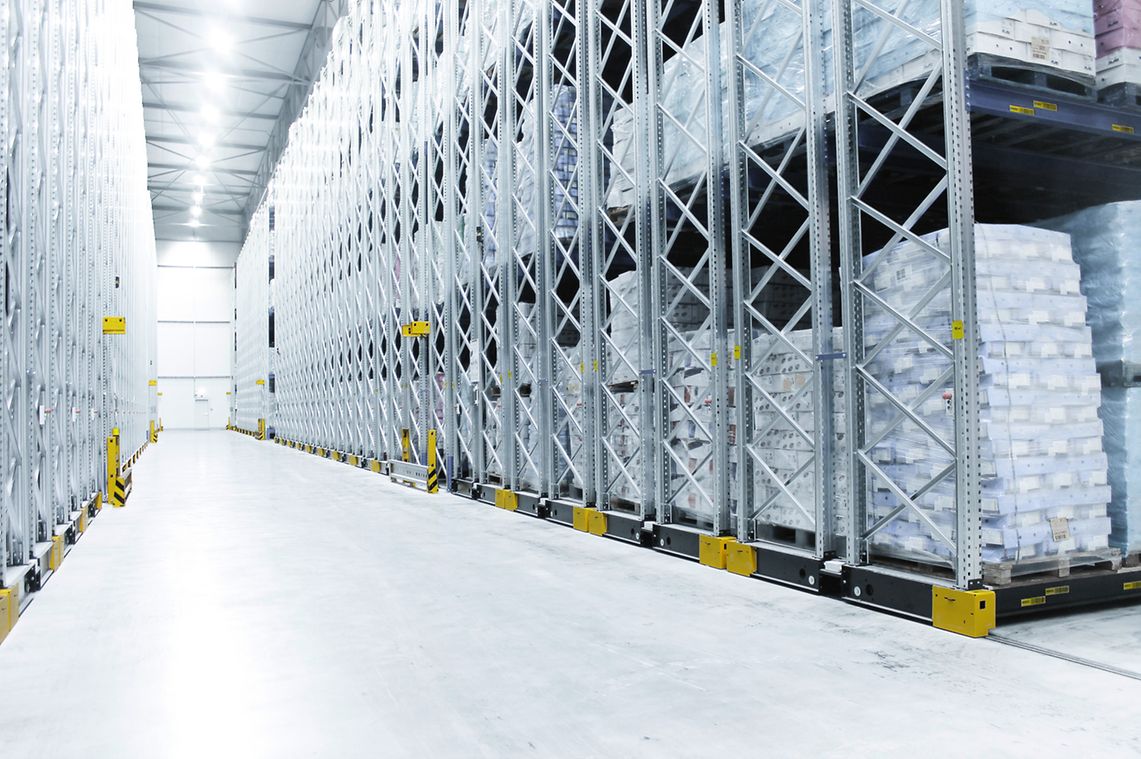

Case Studies Mobile Pallet Racking

Optional Components

The modular concept enables us to put together the perfect system for your individual wishes and requirements.

Remote control for the shelf aisles

• Radio remote control with graphic display

• Selection of the rack aisle to be opened by pressing a button on the carriage or remote control on the stacker

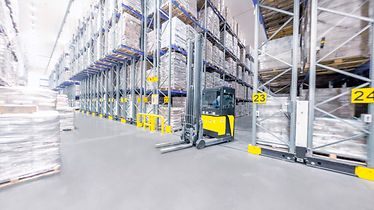

• Time saving thanks to coordinated movement of mobile racking and forklift truck

• Integrated automatic stacker release

• Dynamic aisle change during the process

Control options Distance control

• For the formation of picking aisles

• As an air circulation system in the chilled/frozen area

• As access for fire fighting

Aisle lighting control option

• Reduced energy consumption through light pre-control

• Parallel arrangement of light sources to form mobile rows of shelves

Further options

• Forklift recognition

• Rear system operation

• Interface for warehouse management system

• Remote access/remote diagnostics

• Optical travel warning

• Acoustic travel warning

• Individual carriage cover

• Synchronization control
