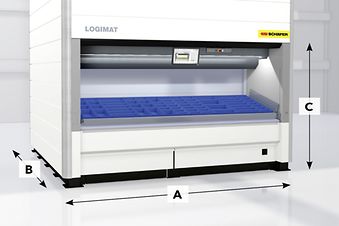

Thanks to its modular design and flexible configuration of the unit height, width and depth, the vertical lift module can be adapted to your spatial conditions and offers a wide range of different dimensions. Of course, this also has an impact on the size of the shelves:
Usable tray dimensions (mm) | A width (mm) incl. paneling | B depth (mm) incl. paneling |
---|---|---|
1,825 x 625 | 2,370 | 2,712 |
1,825 x 815 | 2,370 | 3,092 |
1,825 x 1,323 | 2,370 | 4,616 |
2,025 x 625 | 2,570 | 2,712 |
2,025 x 815 | 2,570 | 3,092 |
2,025 x 1,323 | 2,570 | 4,616 |
2,425 x 625 | 2,970 | 2,712 |
2,425 x 815 | 2,970 | 3,092 |
2,425 x 1,323 | 2,970 | 4,616 |
2,825 x 625 | 3,370 | 2,712 |
2,825 x 815 | 3,370 | 3,092 |
2,825 x 1,323 | 3,370 | 4,616 |
3,025 x 625 | 3,570 | 2,712 |
3,025 x 815 | 3,570 | 3,092 |
3,025 x 1,323 | 3,570 | 4,616 |
3,225 x 625 | 3,770 | 2,712 |
3,225 x 815 | 3,770 | 3,092 |
3,225 x 1,323 | 3,770 | 4,616 |
3,625 x 625 | 4,170 | 2,712 |
3,625 x 815 | 4,170 | 3,092 |
3,625 x 1,323 | 4,170 | 4,616 |
4,025 x 625 | 4,570 | 2,712 |
4,025 x 815 | 4,570 | 3,092 |
4,025 x 1,323 | 4,570 | 4,616 |
