Features and Technical Data of the SSI LOGIMAT®

The vertical lift module for use across all industries. Different sizes and drives offer space for materials of all sizes and weights.

Vertical Lift Module LogiMat®

Specification of the vertical lift module

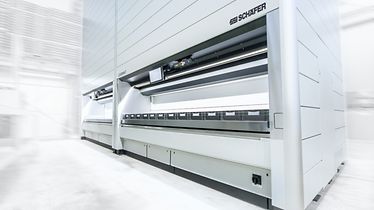

With numerous standard model widths and depths and a freely selectable machine height of up to 24 meters, the SSI LOGIMAT can be perfectly adapted to any structural situation. The compact design makes optimum use of the available room height.

Technical data at a glance:

  • Minimum height: 2,450 mm

  • Maximum height: up to 23,850 mm in 100 mm increments

  • C - Height of the operating opening: 1.950 mm (depending on the leveling height)

  • Several openings per vertical lift module possible

  • Load capacity of the shelf: up to 700 kg

  • Machine payload: up to 60 t

Vertical lift modules or circulation racks – what’s the difference?

These and other questions will be answered in our free Whitepaper Vertical Lift Modules. Here, you can discover all the valuable details about Vertical lifts and their...

Download now!

Basic Technical Data

1. Heights measurement light grid
2. Stable frame construction

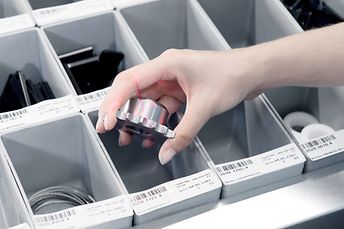

3. Flexible tray concept
4. Variable sheet metal cladding

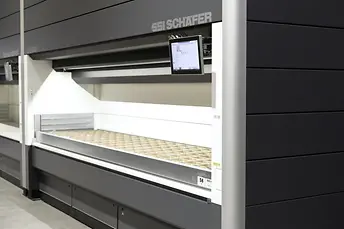

5. Ergonomic operating opening
6. Intuitive touch screen
7. Aluminum corner profiles
8. Double sided shaft monitoring
9. Safety light grid

Images of Logimat for website banners.

Automatic lubrication

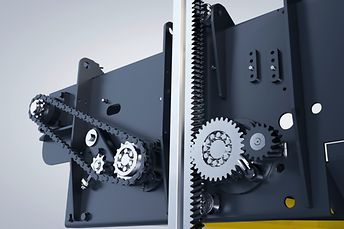

The SSI LOGIMAT is equipped with a rack and pinion drive that operates purely mechanically and is characterized by low wear. In addition, the bearing elevator contains an automatic lubrication system. This means that preventive maintenance is carried out with every elevator movement.

Advantages
• Maximum availability thanks to robust technology
• Minimal maintenance thanks to automatic lubrication
• High positioning accuracy without interference-prone sensors

Elevator of SSI LOGIMAT

Different sizes of SSI LOGIMAT

Technical Data LOGIMAT®

Thanks to its modular design and flexible configuration of the unit height, width and depth, the vertical lift module can be adapted to your spatial conditions and offers a wide range of different dimensions. Of course, this also has an impact on the size of the shelves:

Usable tray dimensions (mm)

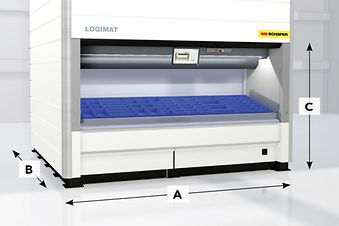

A width (mm) incl. Paneling

B depth (mm) incl. paneling

1,825 x 625

2,370

2,712

1,825 x 815

2,370

3,092

1,825 x 1,323

2,370

4,616

2,025 x 625

2,570

2,712

2,025 x 815

2,570

3,092

2,025 x 1,323

2,570

4,616

2,425 x 625

2,970

2,712

2,425 x 815

2,970

3,092

2,425 x 1,323

2,970

4,616

2,825 x 625

3,370

2,712

2,825 x 815

3,370

3,092

2,825 x 1,323

3,370

4,616

3,025 x 625

3,570

2,712

3,025 x 815

3,570

3,092

3,025 x 1,323

3,570

4,616

3,225 x 625

3,770

2,712

3,225 x 815

3,770

3,092

3,225 x 1,323

3,770

4,616

3,625 x 625

4,170

2,712

3,625 x 815

4,170

3,092

3,625 x 1,323

4,170

4,616

4,025 x 625

4,570

2,712

4,025 x 815

4,570

3,092

4,025 x 1,323

4,570

4,616


The SSI LOGIMAT in the color of your choice

We offer the vertical lift module in four standard colors: white, light grey, dove blue and graphite grey. But your own color scheme is no problem for us and there are no limits to your creativity. Talk to us - we will be happy to realize your wishes.


Do you want maximum performance, ergonomics and user-friendliness?

Thanks to modularly configurable equipment options, the SSI LOGIMAT can be adapted precisely to your individual requirements thanks to the scalable concept. To extend the standard version, SSI SCHAEFER offers numerous options that supplement the functionalities in terms of ergonomics, performance or flexibility.

Vertical lift module LOGIMAT (type SLL)

Earthquake-proof construction

Like many SSI SCHAEFER products, the SSI LOGIMAT has a robust design and can withstand most earthquakes. An acceleration of 1 m/s² is no problem as standard. However, if the vertical lift module is to be installed in an area with a higher earthquake risk, it can also be adapted to the higher requirements. Talk to us!
